Model: S-200 (Equipped with WD-666 motherboard)
Frequency: 58Khz
Color: Grayish white
Voltage :110-220 V AC
Power :60W
Packing: 1 piece
Main unit: 160*48*15 cm Weight: 16kg
Auxiliary machine: 160*48*15cm, weight: 15kg
Product Introduction

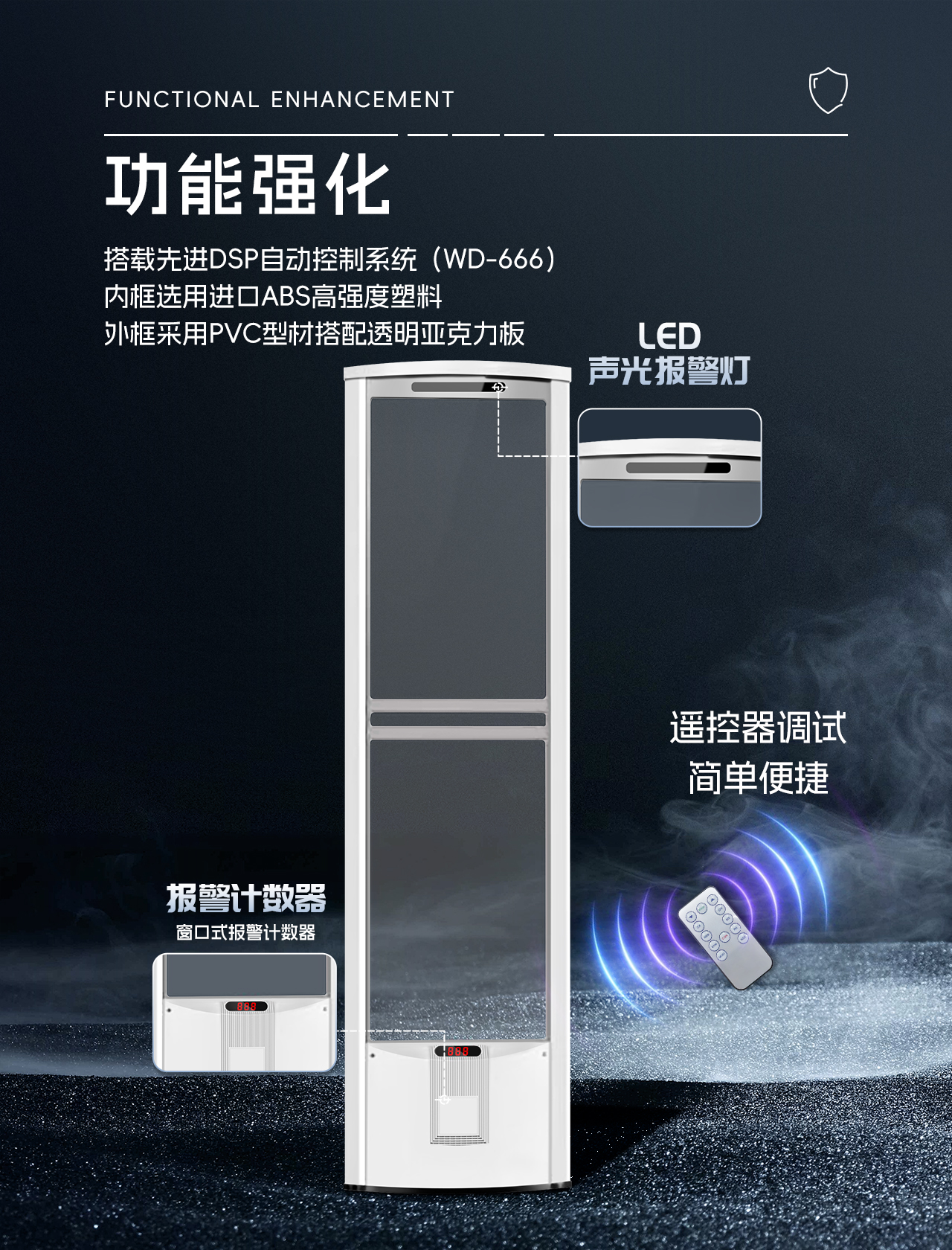

1. Super strong detection distance, stable performance and strong anti-interference ability
2. Manual remote control debugging and operation are simple
3. Display in both Chinese and English, and switch freely
4. It adopts a high-strength ABS plastic frame and is made of double-sided acrylic transparent sheet material

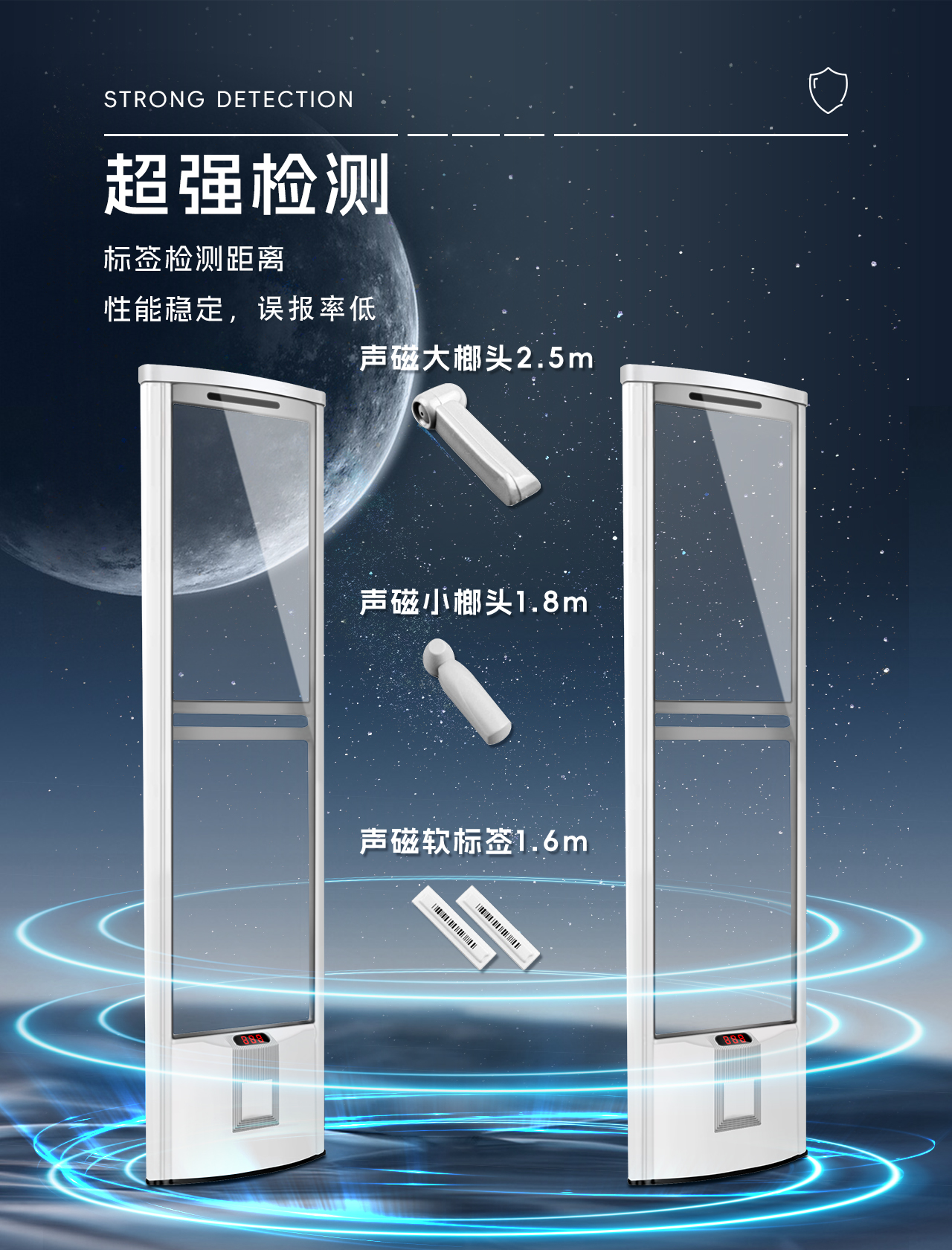

5. Detection distance
DR Soft label: 1.6-1.8m
Small hammer: 1.8-2.2m(25 magnetic rods)
Big hammer: 2.4-2.8m(39 magnetic rods)
6. Usage Overview:
The main unit can be used independently, with integrated transceiver and detection capabilities on both sides.
The secondary unit needs to be connected to the main unit for use, and the detection effect is consistent with that of the main unit.
(Synchronization) Multiple devices can be installed without online connection, automatically synchronizing. It can also be perfectly synchronized with antennas of other brands.
